- Intelligent: Multi-spindle synchronous control, auto bag specification adjusting without pulling the gears.
- Simple: 4 set HMI with intuitive dynamic interface, easy operation and efficient, zero waste
- Convenient: real-time monitoring of production status by mobile APP, without manual registration
- High speed: The speed can reach 110-140pcs/min
- Stable: Thick cast iron base ensures the stability of high-speed operation with low waste rat

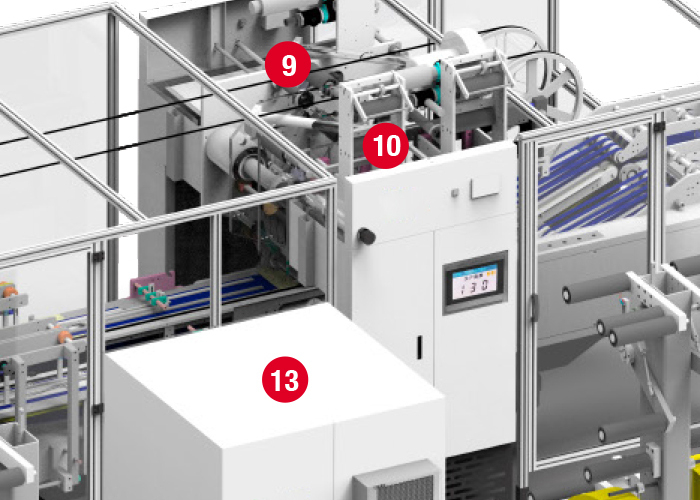

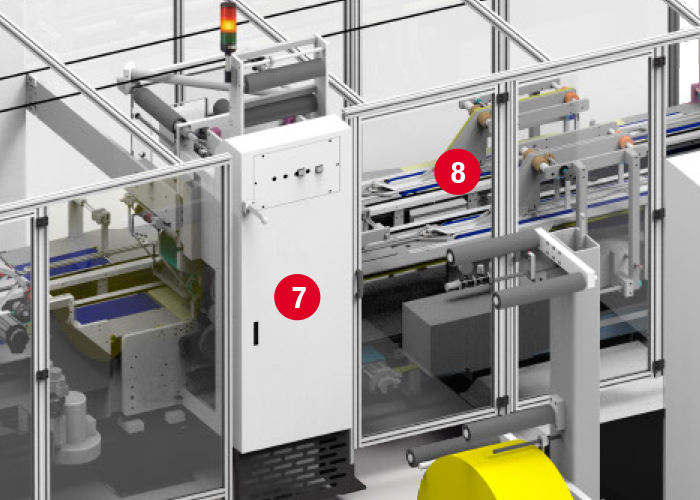

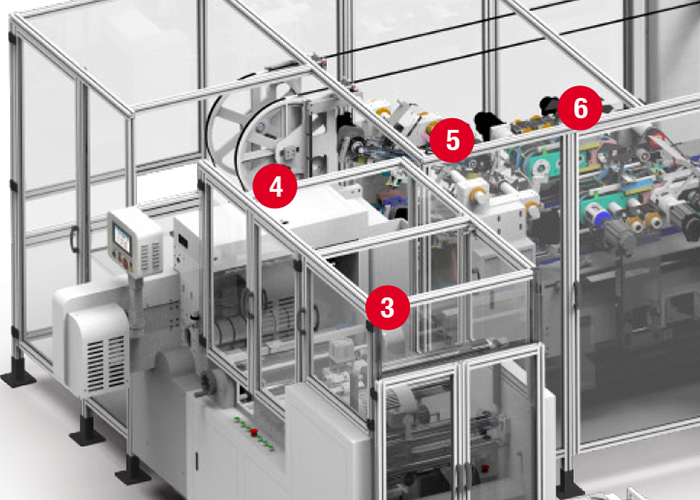

Main devices:
- Main Unwinder
- Exhaust Machine
- Cutting Machine
- Pulling Device
- Bag Opening Device
- Triangular Forming Device
- Valve Patch Device
- Forming Rack
- Bottom Patch Device
- Cover Patch Device
- Conveyor
- Cover and Bottom Patch Unwinder
- Electric Cabinet
- Valve Patch Unwinder
|
SIZE RANGE
|
|
|
Bag Width
|
320-600mm
|
|
Bag Length
|
430-910mm
|
|
Bag Bottom Width
|
80-180mm
(>160 mm Only applicable to PP Woven bags with single side opening) |
|
Bottom Center Distance
|
350 - 750 mm
|
|
PP Woven Sheet Length
|
530 - 1,200 mm
(1,090 mm Only applicable to PP Woven bags with single side opening) |
|
VALVE PATCH SIZE RANGE
|
|
|---|---|
|
Cutting Length
|
80-200 mm
|
|
Outer Valve Opening Cutting Length
|
80-300 mm
|
|
Width
|
170-335 mm
|
|
SPECIFICATION
|
|
|
Overall Dimension
|
12m(L) X 8m(W) X 3m (H)
|
|
Machine Weight
|
18000kgs
|
|
Power Supply
|
380V 50Hz 3 Phase 5 Wire
|
|
Rated Power
|
140kw (120pcs/min, Running Power 65kw)
|
|
Air Pressure
|
0.7MPa 120m3/h
|
|
Water Supply
|
0.4Mpa 1M3/h
|
|
Production Speed
|
110-140 Pcs/min
|
|
Welding Method
|
High Temperature Gun Welding (Max. Temperature 750℃)
|
